خانه /محصولات/بوم تلسکوپی بیل مکانیکی/Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator

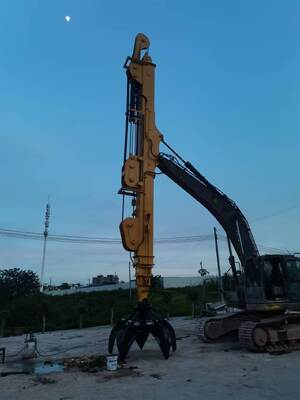

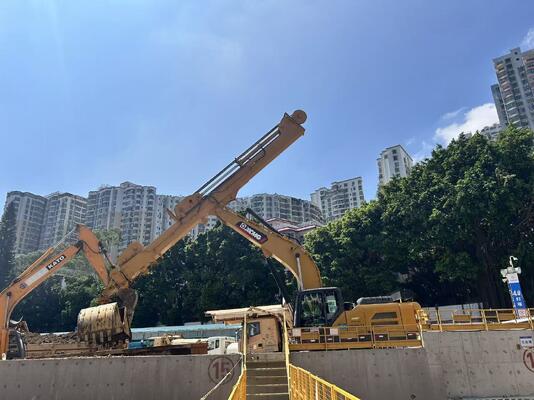

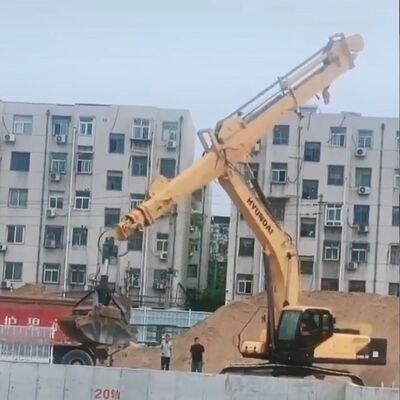

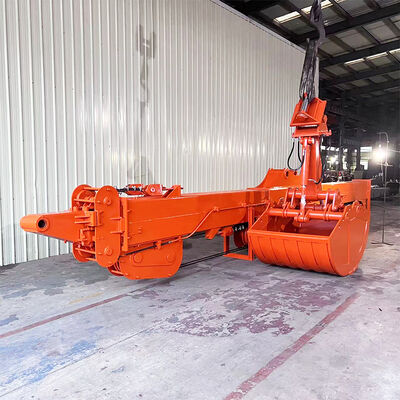

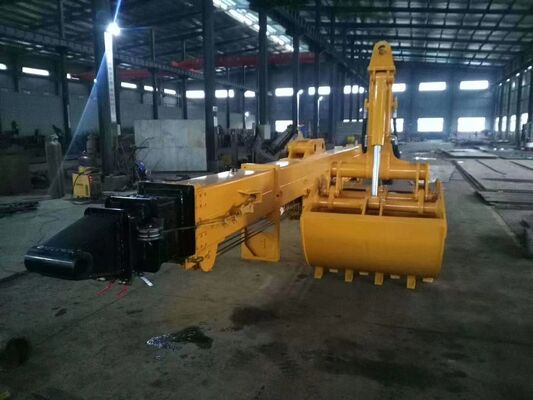

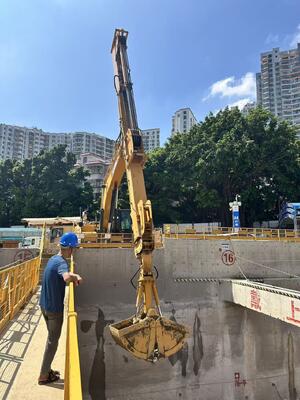

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator

1 قطعه
MOQ
$10800/pieces
قیمت
Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
نام تجاری: Zhonghe
نام قطعه: بازوی تلسکوپی کاوشگر
مواد: Q355D/Q690D
صنایع قابل اجرا: انرژی و معدن و تخریب
بیل مکانیکی مناسب: 10-15ton
طول (م): 10M 12M
ظرفیت سطل: 0.2cbm
رنگ: همانطور که مشتری نیاز دارد
گارانتی: 6 ماه
وضعیت: 100% جدید
کیفیت: با کیفیت بالا
MOQ: 1 عدد
بسته بندی: بسته بندی استاندارد
خدمات پس از فروش ارائه شده است: پشتیبانی ویدیوی آنلاین
اطلاعات اولیه
محل منبع: گوانگدونگ، چین
نام تجاری: Zhonghe
گواهی: CE
شماره مدل: SSB001
سند: بروشور محصول PDF
پرداخت
جزئیات بسته بندی: بسته بندی کیسه حباب دار
زمان تحویل: 25-30 روز کار
شرایط پرداخت: T/T
قابلیت ارائه: 5 قطعه / تکه در ماه
توضیحات محصول

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 0Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 1




Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 2Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 3
Excavator(ton)
Max Depth(mm)
Effective Length(mm)
Bucket Capacity(cbm)
6-10
10000
7600
0.2-0.3
11-15
14000
10500
0.4-0.6
20-30
16000
12500
0.8-1.5
30-35
20000
15500
1.3-1.66
30-35
25000
20500
1-1.4
40-45
25000
20500
1.8-2.5
40-45
30000
25100
1.4-2

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 4

The Material we choose---Ensure Longer Life-span, High-effective, More Resistant

The material of the telescopic arm for sale tube we use is BS900E. The material is lighter and stronger than others.

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 5

The Main Material of telescopic arm for sale tube we use is BS900E, the other place is Q355B

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 6Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 7

Different attachments can be used for different working environments, and robotic arms of different sizes can also be customized to meet different needs. Please contact me for specific parameters.

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 8Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 9

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 10

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 11

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 12Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 13Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 14Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 15Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 16Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 17Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 18Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 19Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 20



Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 21

Quality Control

Post-welding Testing
Accuracy Testing
Weld bead testing
Testing before send out goods
Operation Testing

The first system is the technical design drawing review mechanism
The second system is the semi-finished product review mechanism,(each process has a detection testing for the previous process)

The third system is the finished product testing.
(Before painting, the overall inspection is carried out to check whether the design size matches the welding size, and whether theinstallation size meets the design requirement.)
To sum up, every single ZHONGHE product has been passed the above three-stage inspection system to ensure that is qualified before shipping.Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 22

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 23Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 24

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 25

Excavator Attachment Clamshell 10m 12m Three-section Telescopic Arm Long Reach Boom and Arm Suitable for 10-15ton Excavator 26
